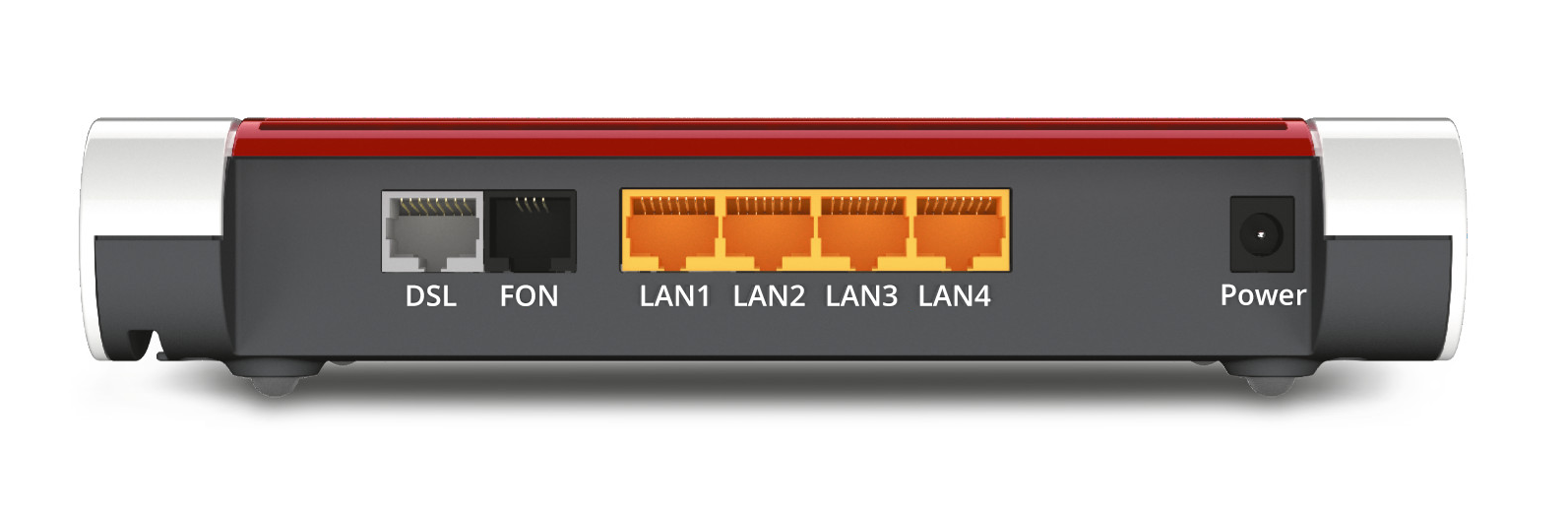

Ports and interfaces

DSL

Port for connecting to DSL (ADSL2+/VDSL). This port will not be used if the FRITZ!Box is installed on a fiber connection.

FON

RJ11 socket for connecting analog telephones, fax machines and answering machines.

LAN 1 — LAN 4

4 gigabit Ethernet ports (10/100/1000 Base-T) for connecting computers, network hubs, game consoles and other network devices.

Power

Socket for connecting the power supply unit.

LED indicators

1. Power/DSL

On : Device has electrical power and the DSL line is ready for operation

Flashing : Device has electrical power and the connection to DSL is being established or has been interrupted

2. WLAN

On : Wireless LAN is enabled

Flashing : Switching wireless LAN function on or off

3. Fon/DECT

On : Telephone connection via Internet or land-line network active

4. Connect/WPS

Flashing :

Registration of a wireless via WPS in progress
Registration of a DECT device in progress

Flashing rapidly : WPS aborted: more than two wireless devices are performing WPS at the same time

5. Info

Glows green :

Stick & Surf with FRITZ!WLAN USB stick is concluded
Adjustable

Flashing green :

Updating FRITZ!OS
Stick & Surf with FRITZ!WLAN USB stick in progress
Time budget for online time has been reached
Adjustable

Lights or flashes red :

Error:

Open the FRITZ!Box user interface
Follow the instructions on the Overview page in the user interface

How to connect

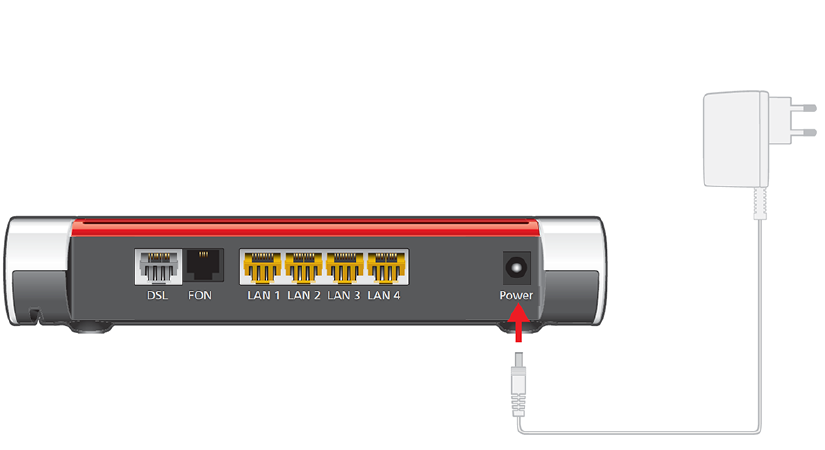

1. Connect to power

Connect the power supply unit to the Power socket on your FRITZ!Box
Plug the other end into an AC power outlet

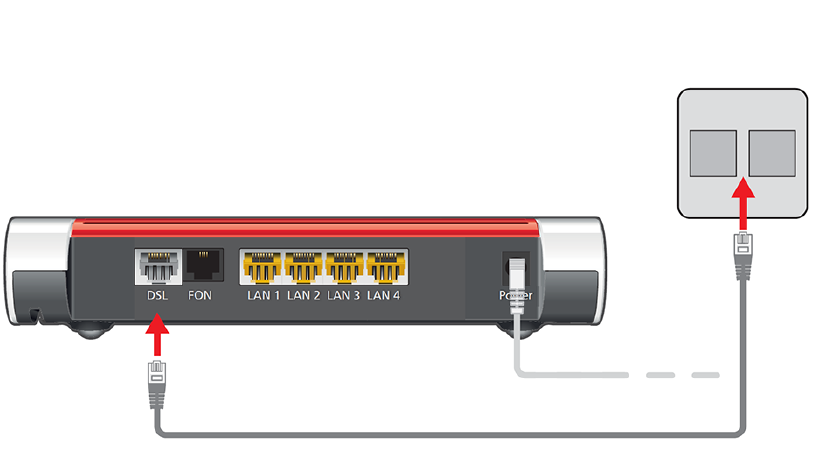

2. Connect to DSL

Insert the grey DSL cable into the DSL port on your FRITZ!Box
Insert the free end of the cable into the DSL or Line socket on the splitter or TF2007 phone socket

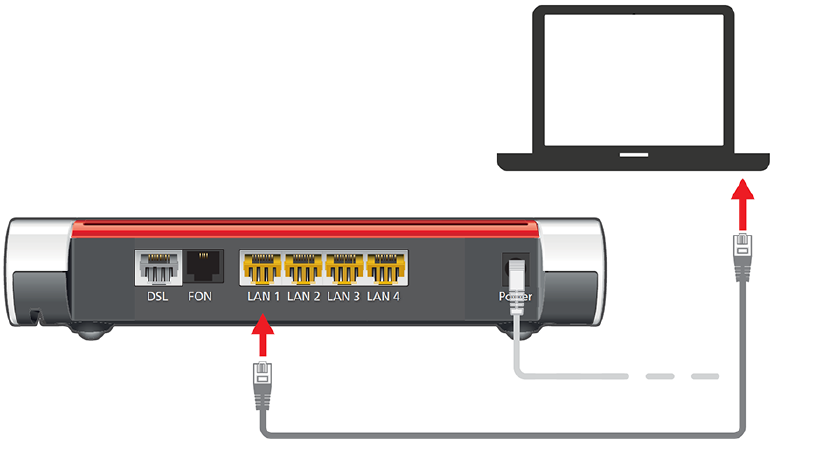

3. Connect to PC or laptop

Insert the network cable into the LAN socket of the computer
Insert the free end of the cable into one of the LAN sockets on the FRITZ!Box

How to configure

Configuration time: 15-20 minutes.

Step 1 — Opening the web interface

Open your web browser (Internet Explorer, Firefox,…) and go to the web interface of your FRITZ!Box. By default, it should be reachable on http://fritz.box or http://192.168.178.1.

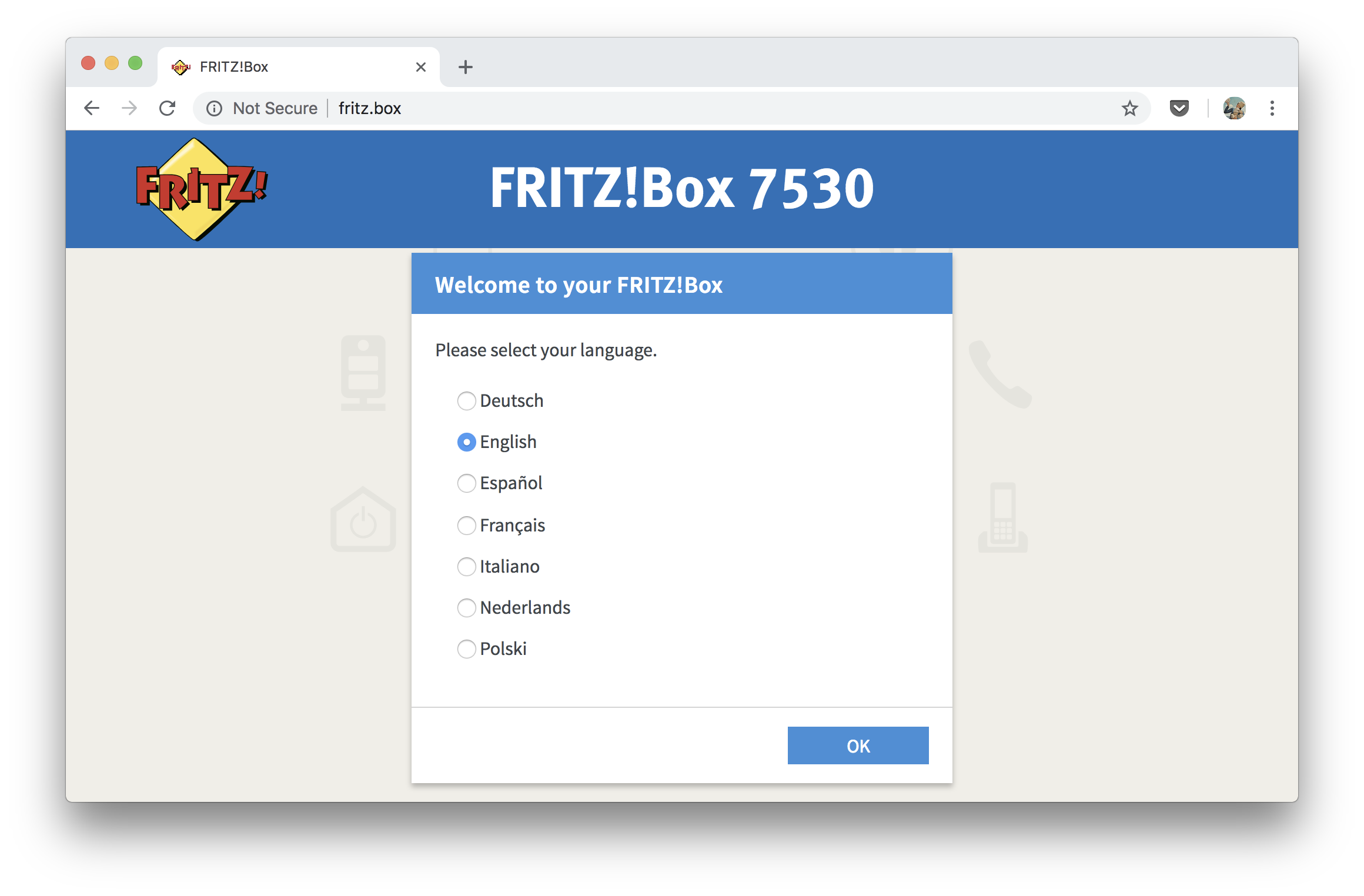

You will be redirected to the wizard for the first basic configuration. Select English or another language if preferred.

Click on Next to continue.

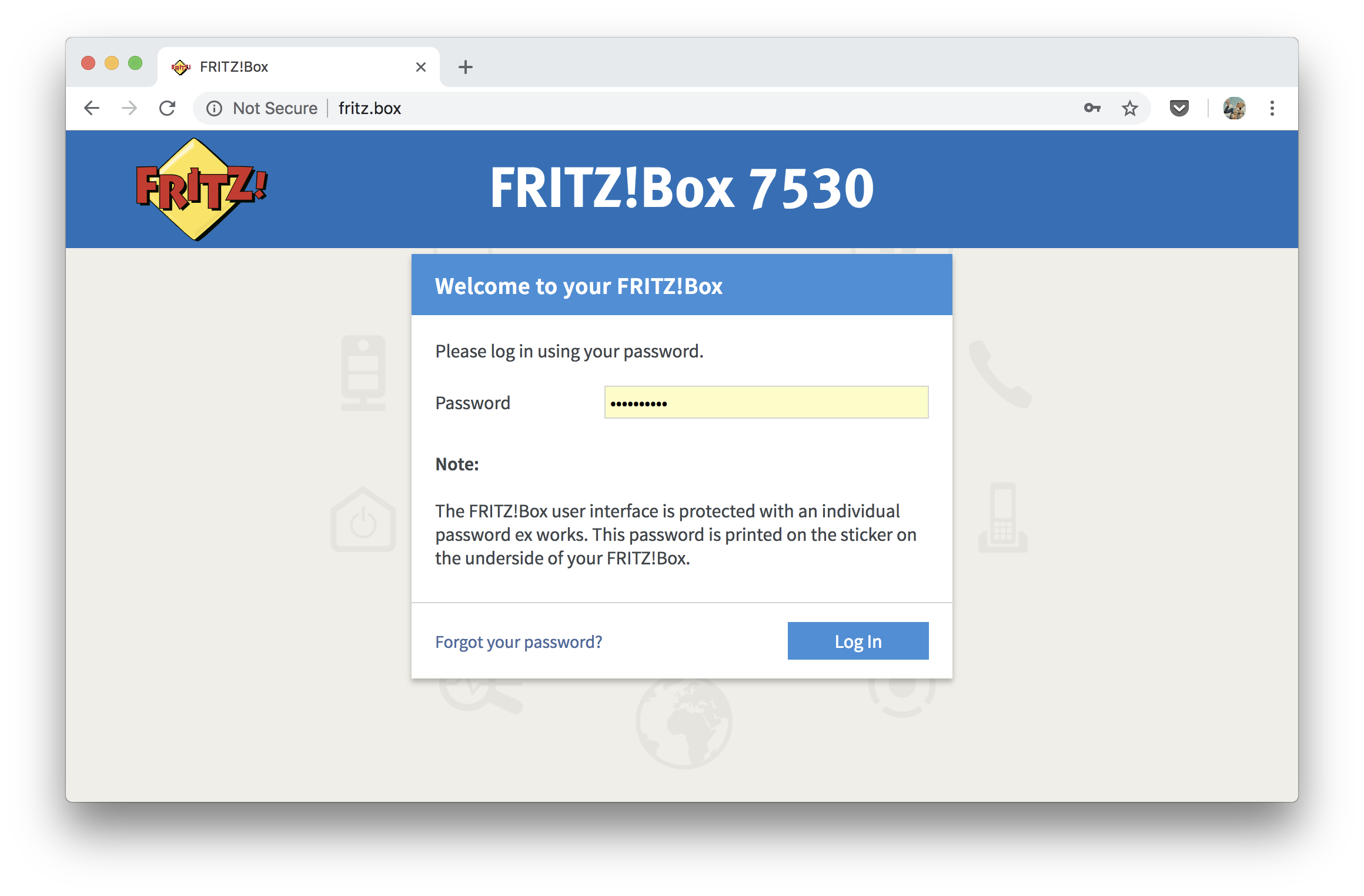

Step 2 — Logging in

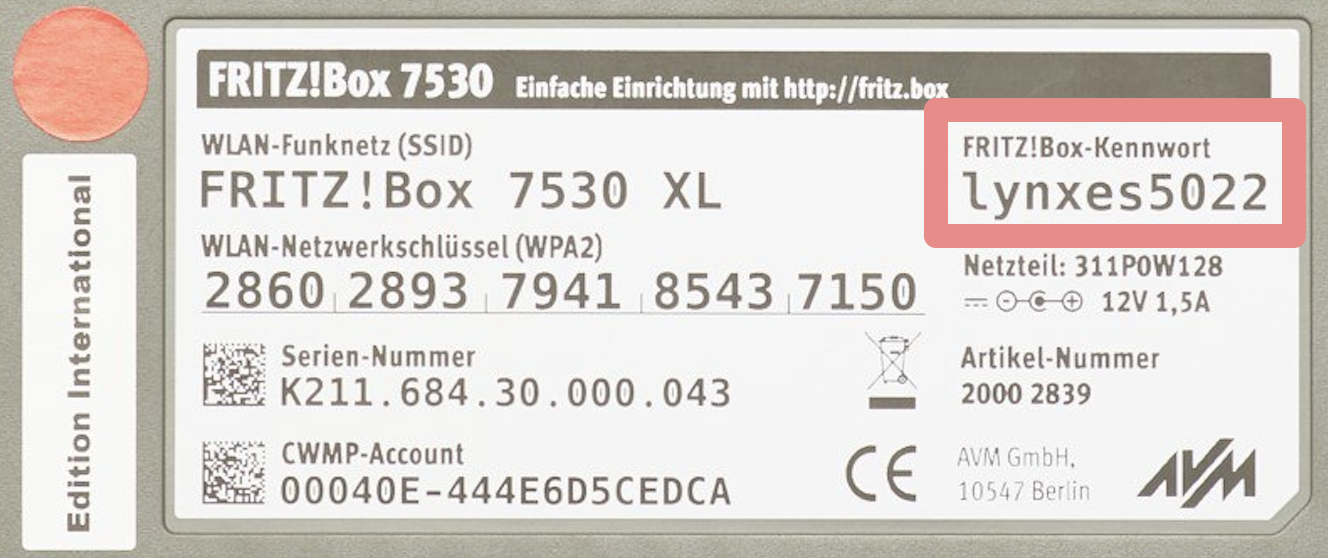

The language of the web interface has now changed to the language of your choice. First of all, you need to enter the password of your FRITZ!Box. You can find it on the white sticker on the underside of the device:

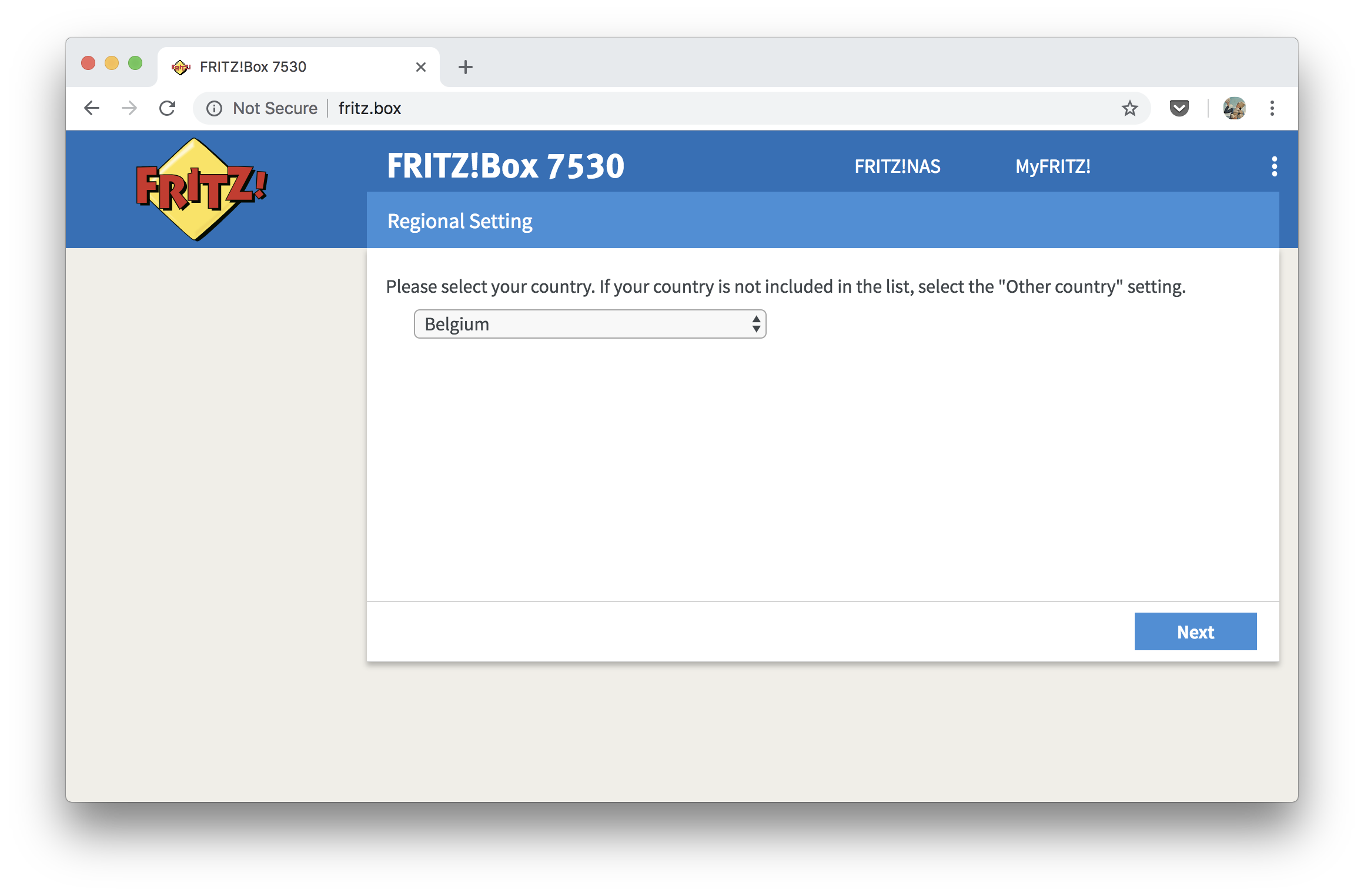

Step 3 — Regional setting

Next you will see the screen asking to choose the regional setting.

Select Belgium in a drop-down menu and click on Apply.

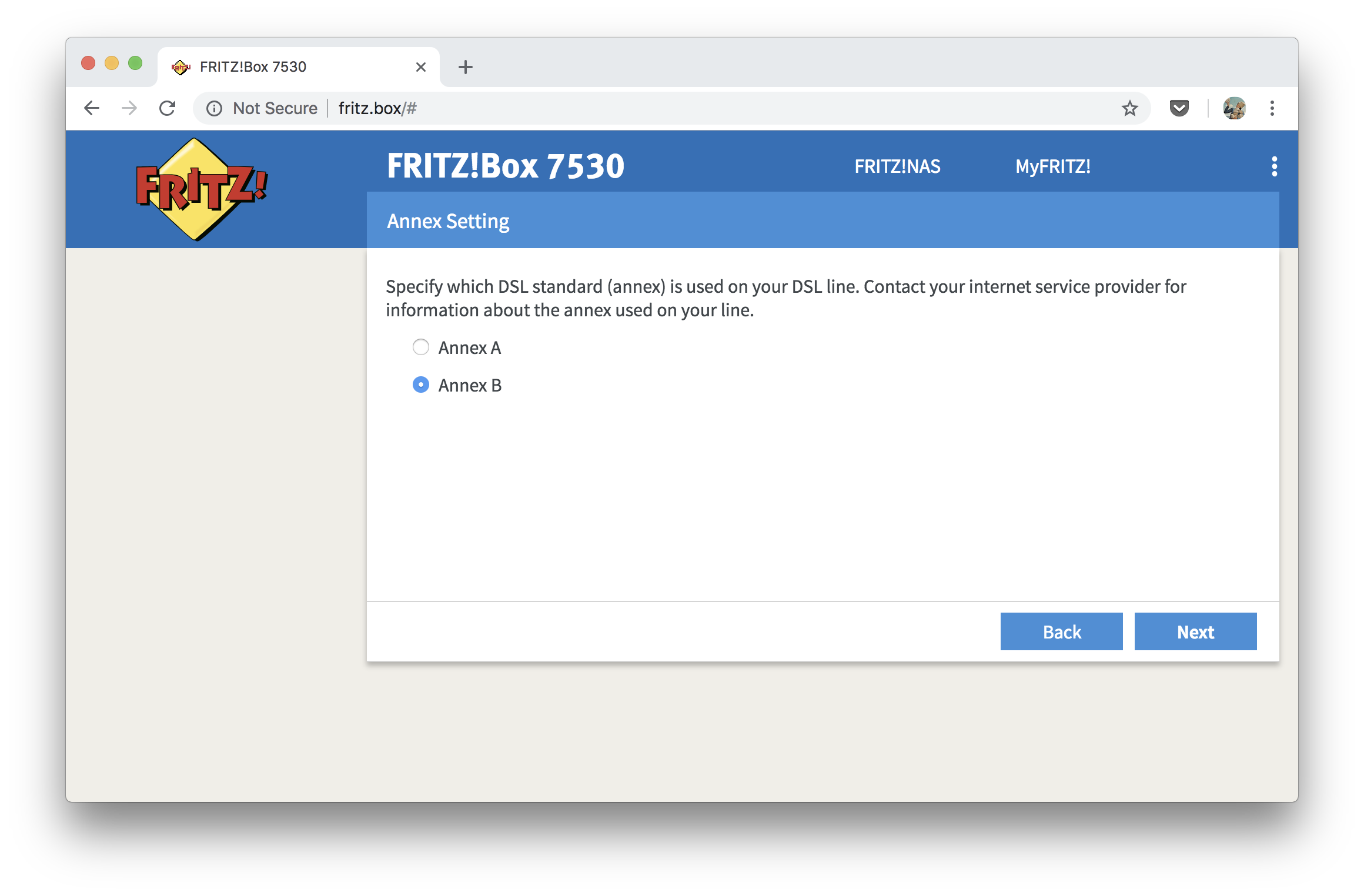

Step 4 — Selecting the annex

In order to make a successful connection to the edpnet network, your device needs to be put into the correct Annex setting, that depends on the type of your connection.

Annex A: ADSL (PSTN or raw copper)
Annex B: VDSL

Choose the corresponding Annex setting and click on Next.

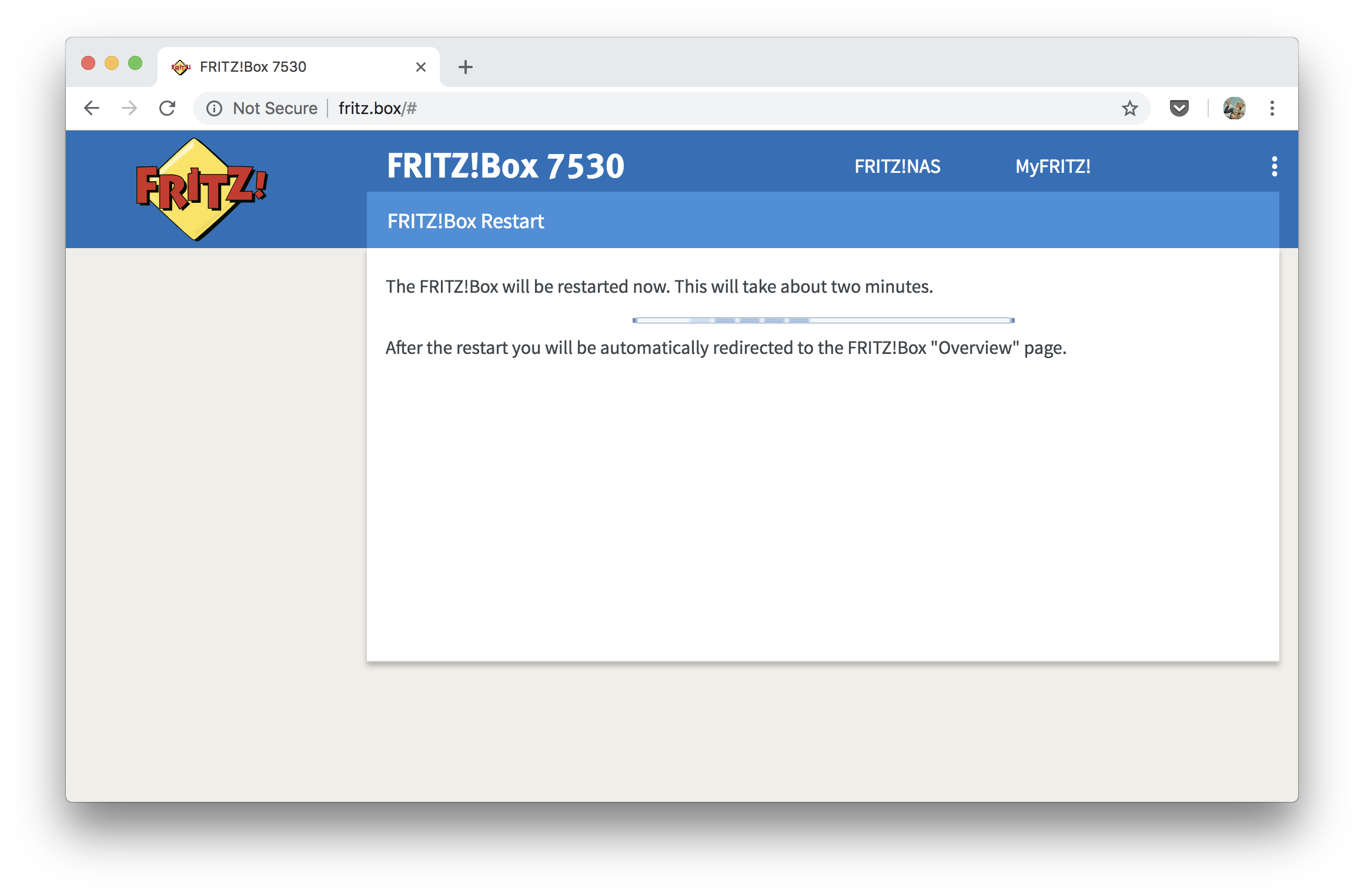

Step 5 — Reboot

The FRITZ!Box will now automatically reboot. It may take up to 2-3 minutes.

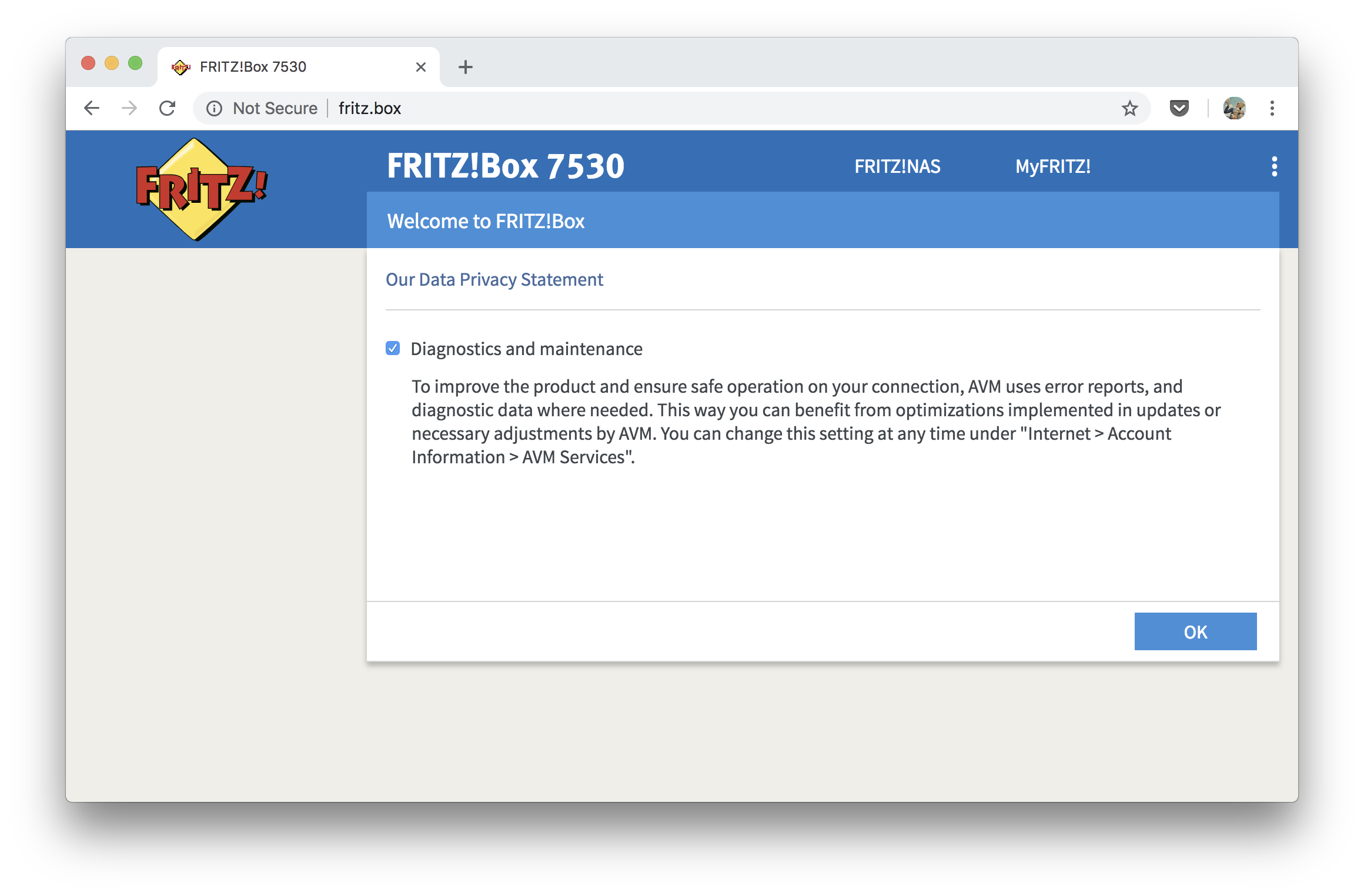

Step 6 — Welcome to the FRITZ!Box

At this step, the FRITZ!Box will suggest to enable Diagnostics and maintenance option, which means that the device will be sending technical diagnostics data to AVM. Feel free to enable or disable the setting.

Step 7 — Wizard

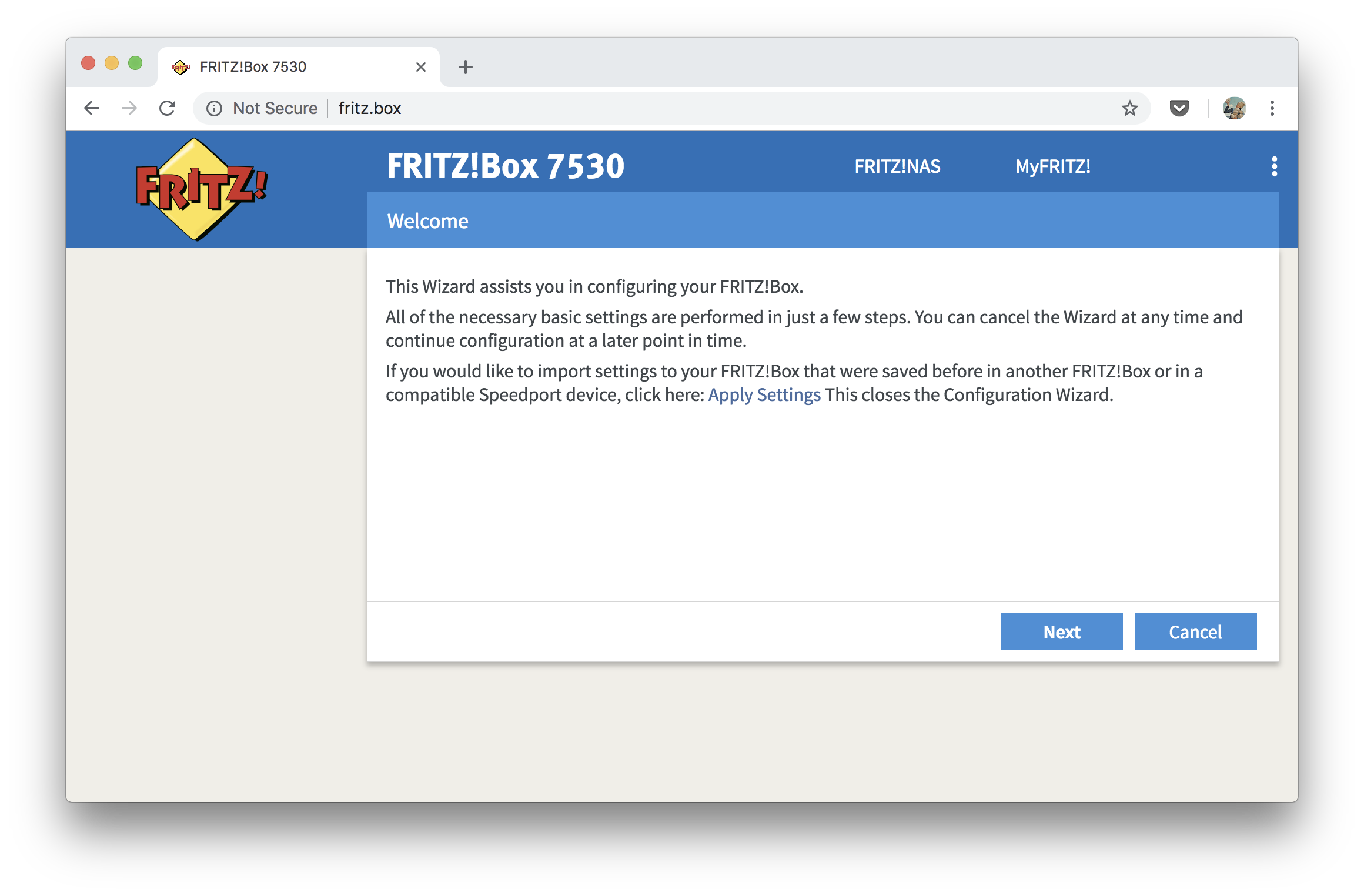

The next screen is the Welcome screen. Click on Next to start the wizard.

IMPORTANT! If you purchased your FRITZ!Box not from edpnet, the automatic configuration is unfortunately not possible. In such a case, click on Cancel and proceed with manual configuration (see Step 11). Don't worry, it won't take more than a few minutes!

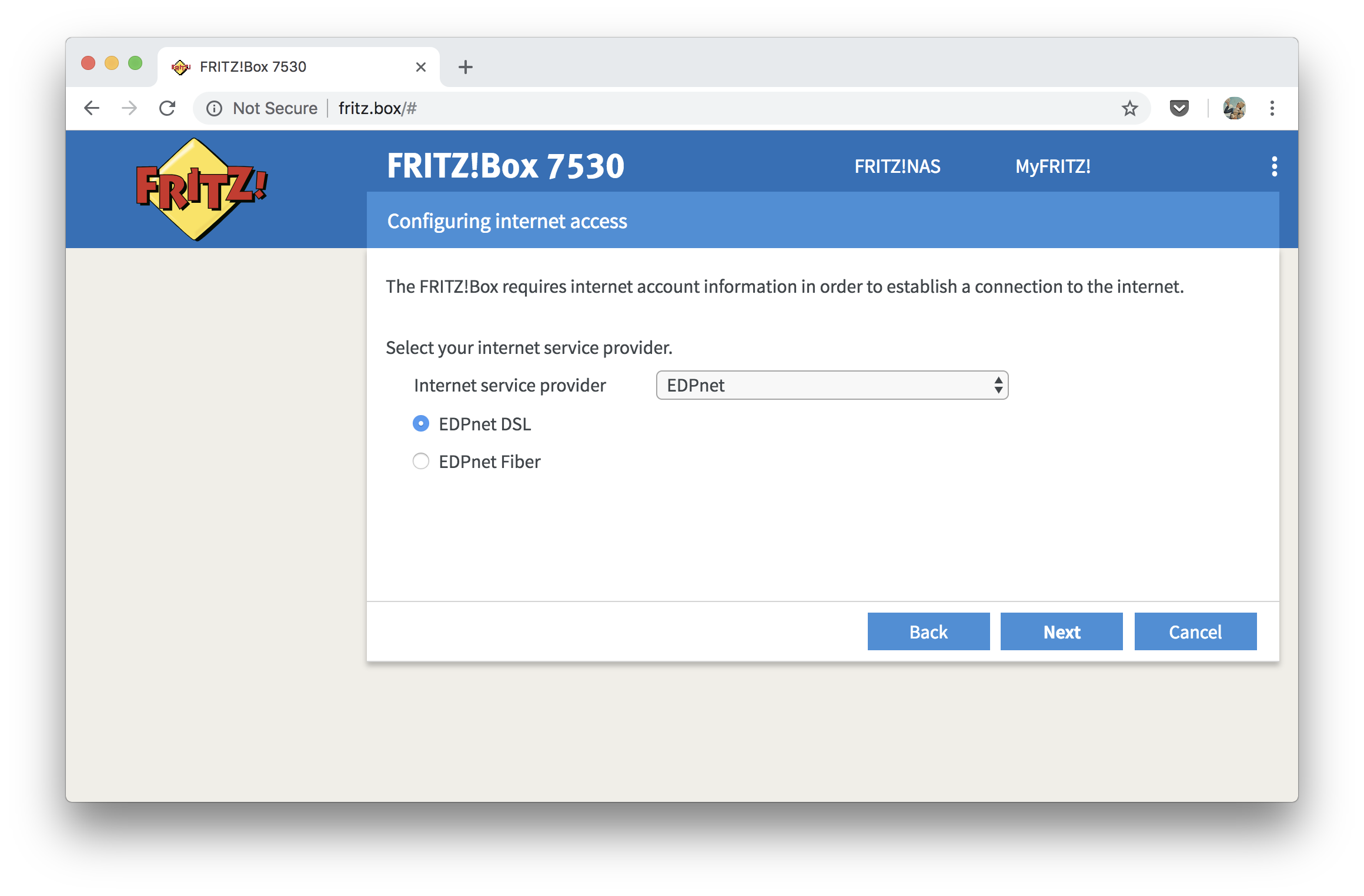

Step 8 — Account Information

In the wizard, you need to choose your Internet Service Provider. Choose EDPnet in a drop-down list and select EDPnet DSL option. Click on Next.

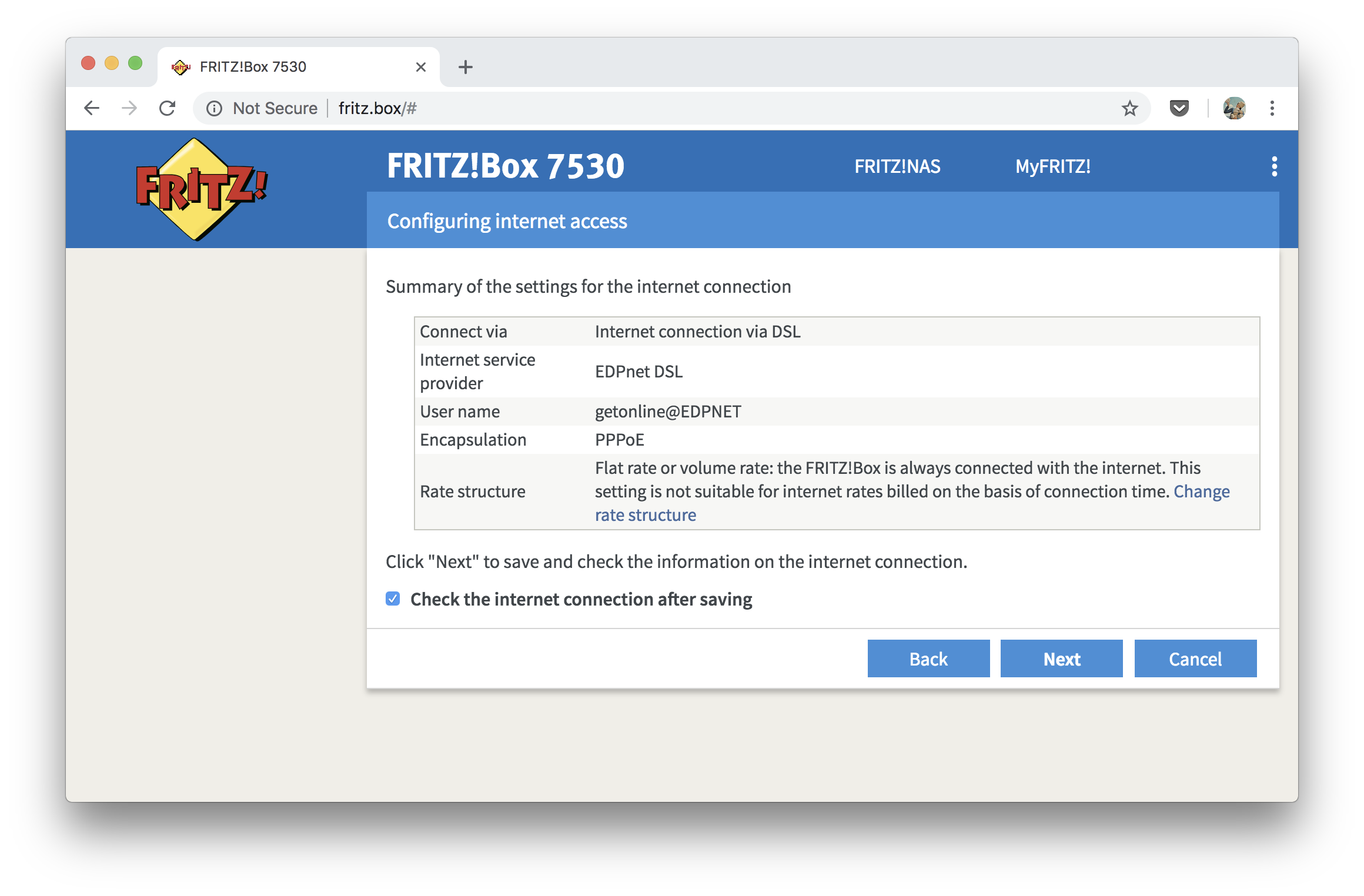

Step 9 — Confirm settings

If you have chosen EDPnet as your ISP, all the settings will be filled in automatically for your connection. Click on Next.

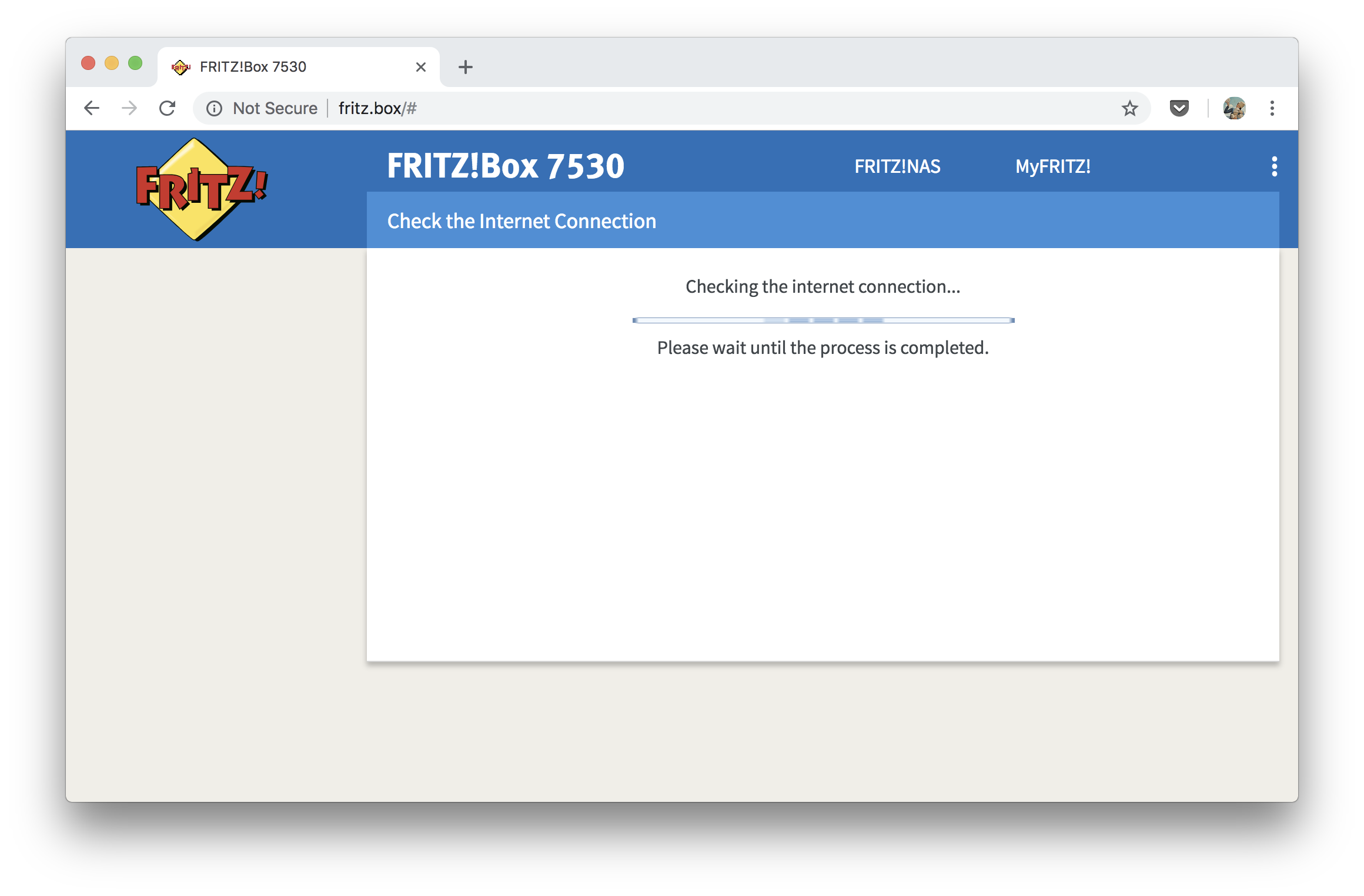

Step 10 — Checking internet connection

Your device will now try to connect.

If there is a green line, it means the configuration has been finished successfully. Press Next.

If there is a red line, check if your modem/router is connected to the DSL-line and if it gained synchronization (the Power/DSL LED should not be blinking).
If you are not sure if your device is receiving a DSL signal, please, contact our customer service.

Step 11 — Manual configuration

These steps can be followed if your internet connection is still not working after you followed the above-mentioned steps of automatic configuration. This part of the guide continues the steps of automatic configuration.

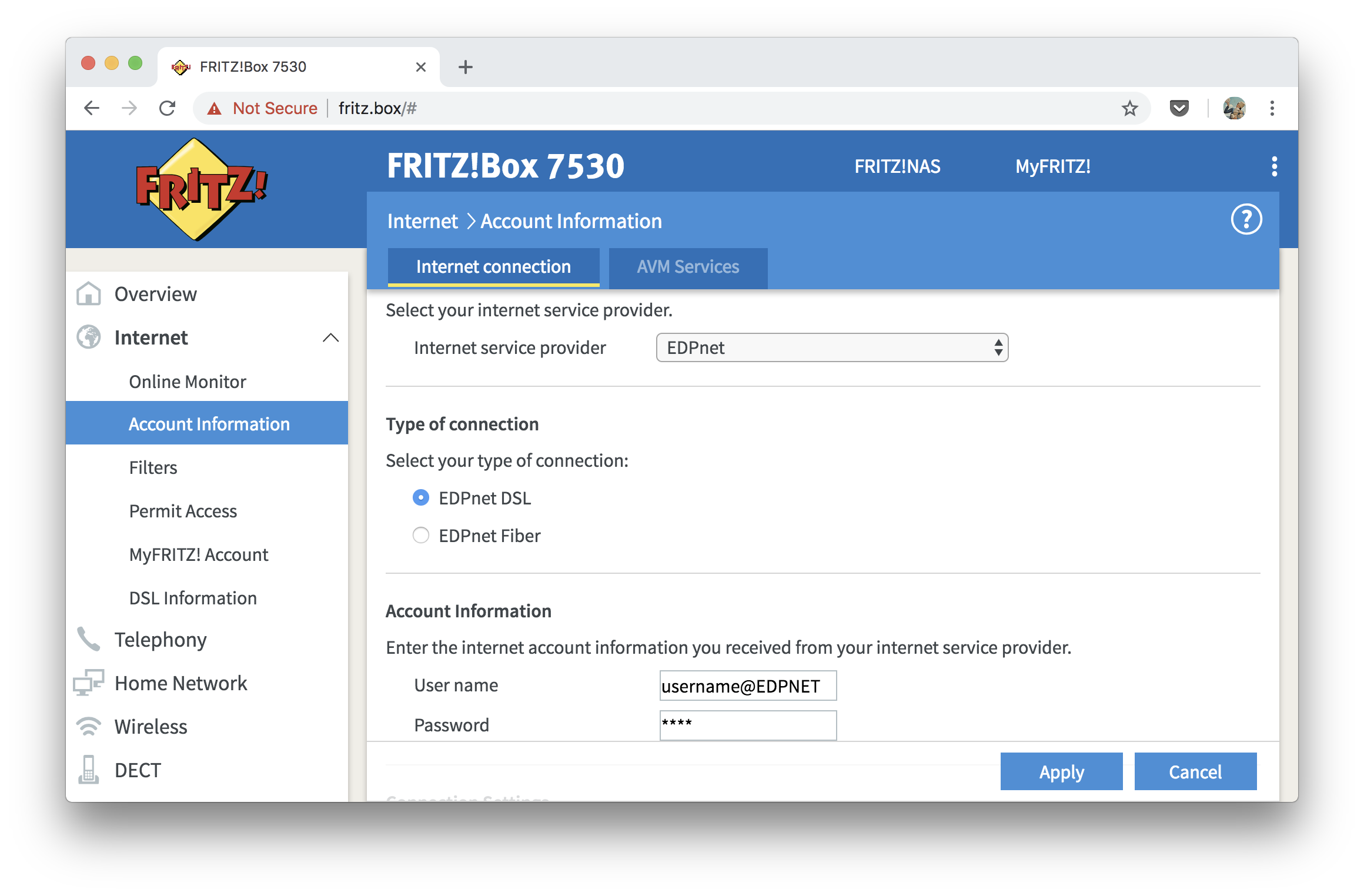

Click on Internet in the main menu and then select Account Information in a drop-down list. Choose EDPnet in the drop-down list of Internet Service Provider. The only thing you have to fill in at this step is your connection credentials (username and password) which you received from edpnet. Then click on Apply.

What to do if I only have a phone

No worries! Configuring your FRITZ!Box is easy—even if you don’t have any laptop or PC. Just use your phone or tablet to access the modem web interface and set up internet connection.

See our guide: How do I configure my FRITZ!Box if I only have a phone or a tablet
